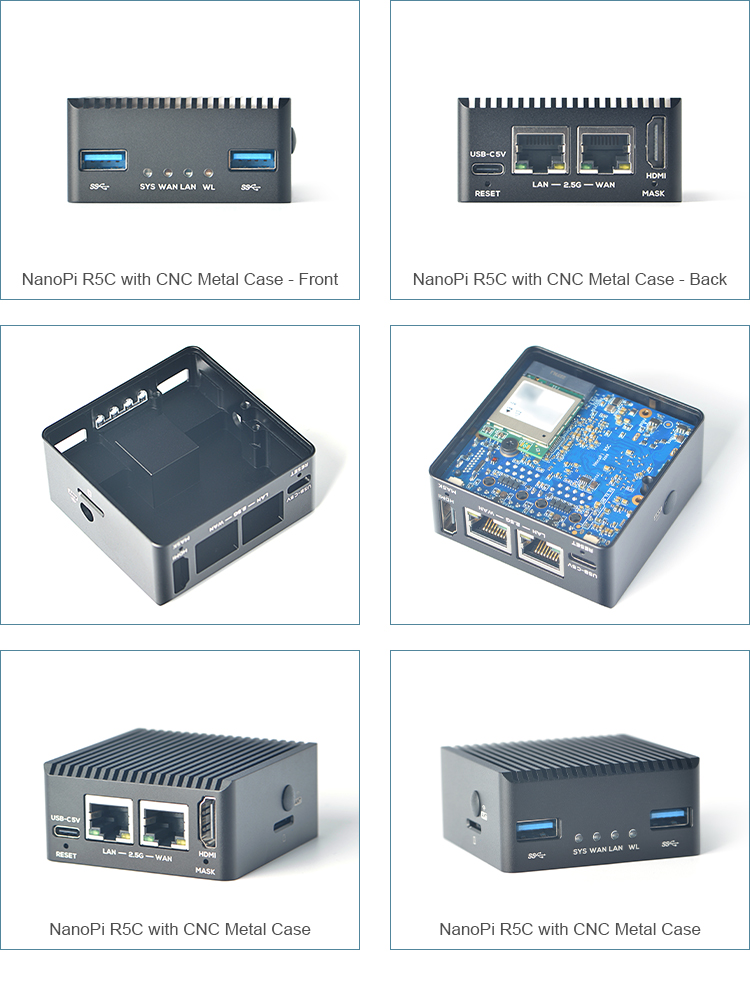

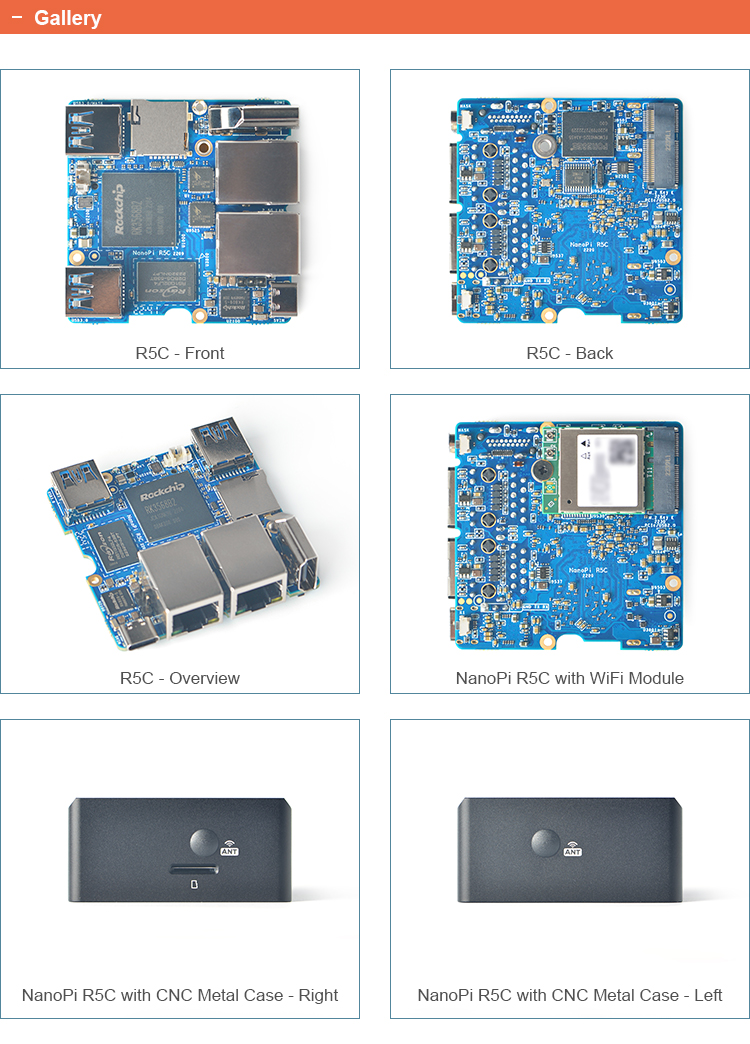

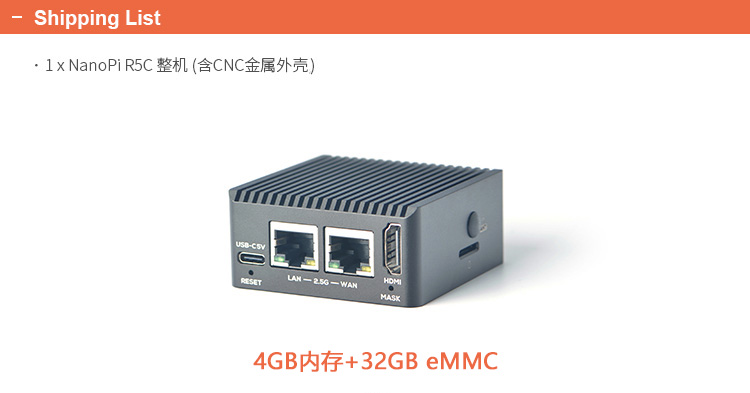

NanoPi R5C双2.5G+M.2 WiFi迷你开发板,全金属外壳,RK3568开发板-----4GB内存+32GB eMMC


查看大图

NanoPi R5C双2.5G+M.2 WiFi迷你开发板,全金属外壳,RK3568开发板-----4GB内存+32GB eMMC

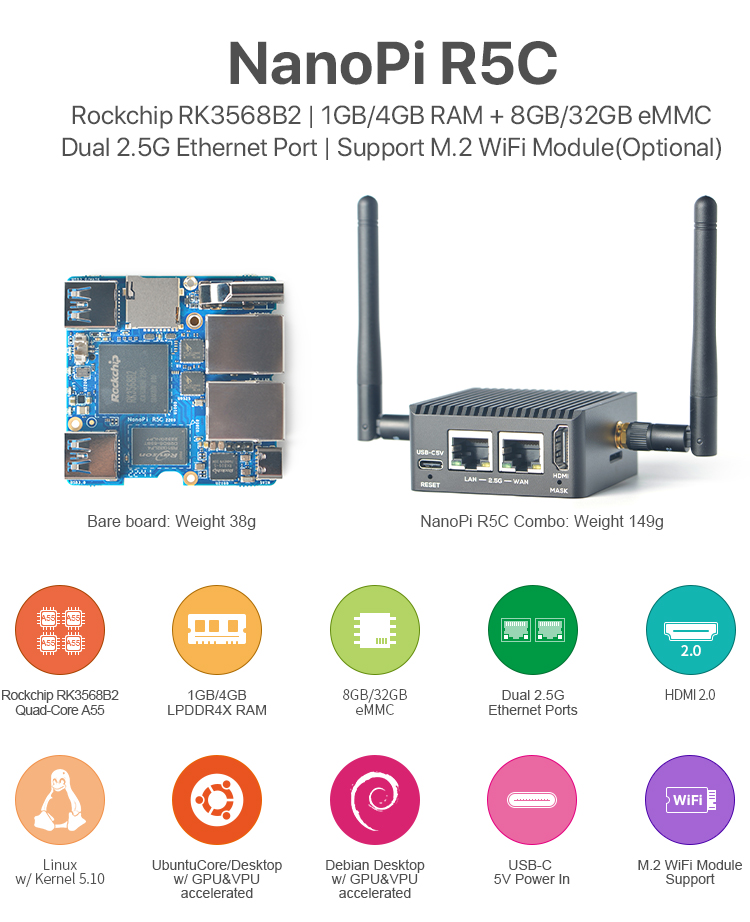

NanoPi R5C(简称“R5C"”)是友善电子团队设计出品的一款双2.5G 的开发板,它采用瑞芯微RK3568B2作为主控处理器,配备1GB/4GB LPDDR4X内存,和8GB/32GB eMMC闪存,并支持TF卡启动和运行系统。

  • 商品编号:22120101
  • 商品重量:400.000 克(g)
  • 货  号:22120101
  • 品  牌:FriendlyARM友善之臂
  • 所得积分:7
  • 销售价: ¥399.00
购买数量:
  (库存1000)

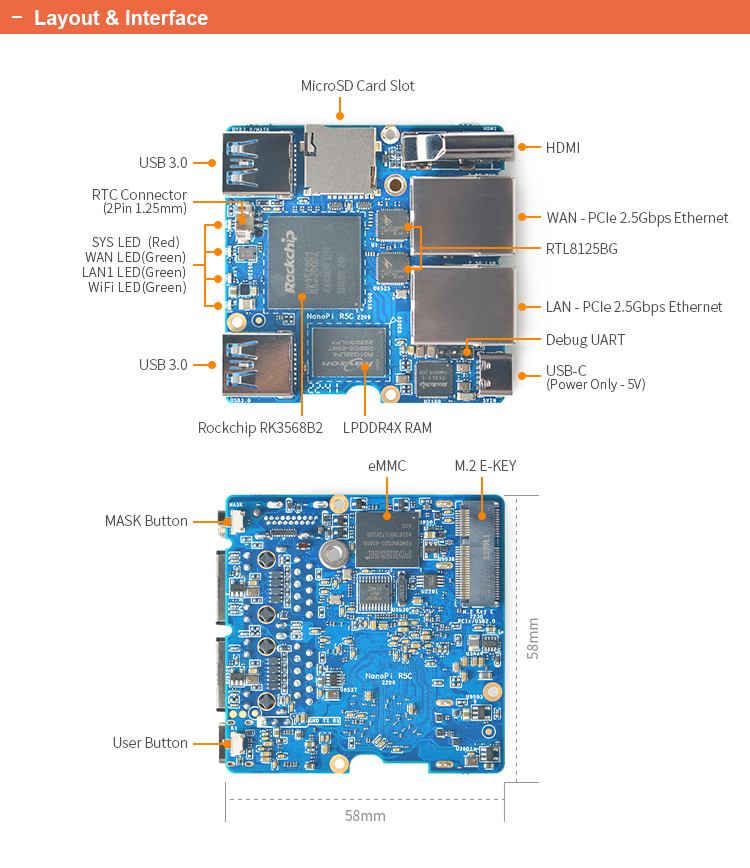

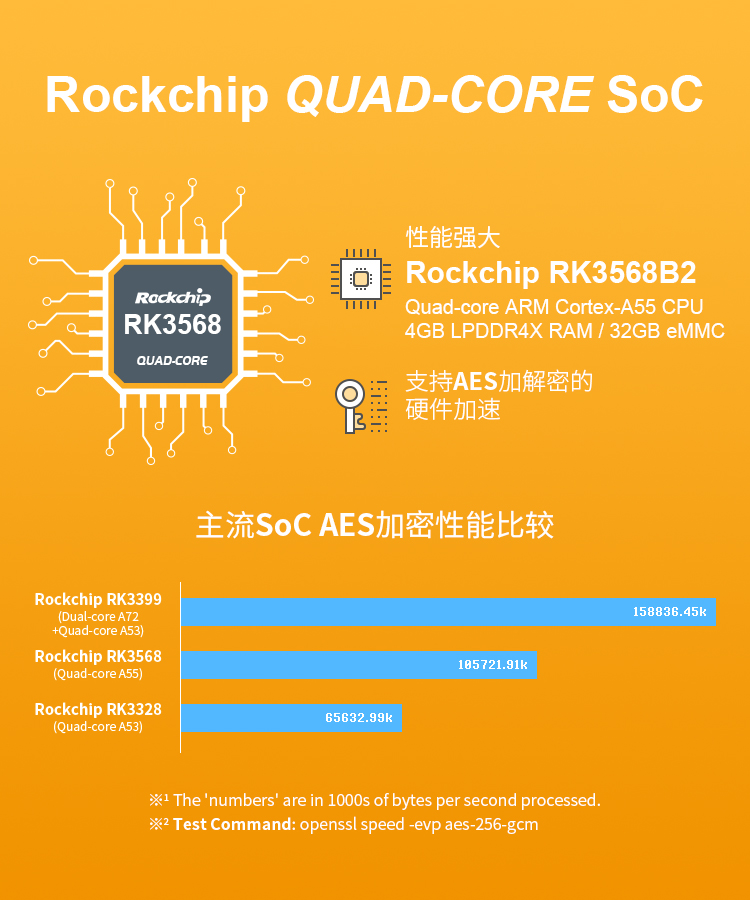

CPU Model: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 2.0GHz
GPU Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
VPU 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU Support 0.8T
Memory RAM: 1GB/4GB LPDDR4X
Storage MicroSD Slot x1: support UHS-I
Flash: 8GB/32GB eMMC

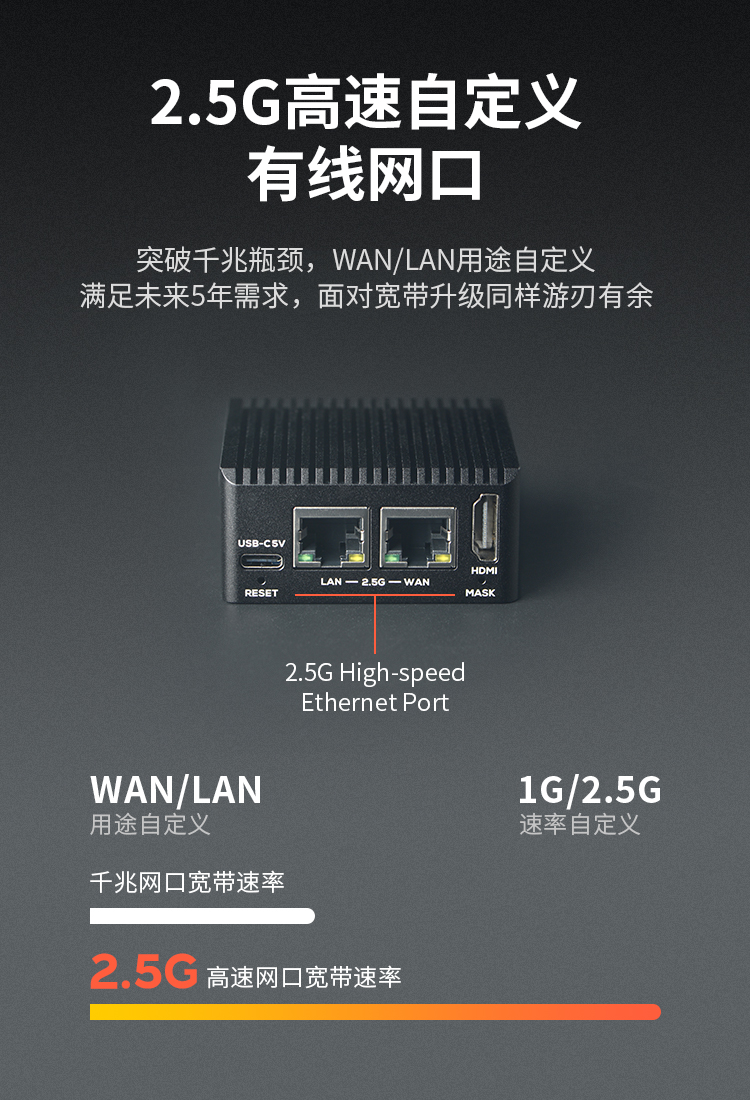

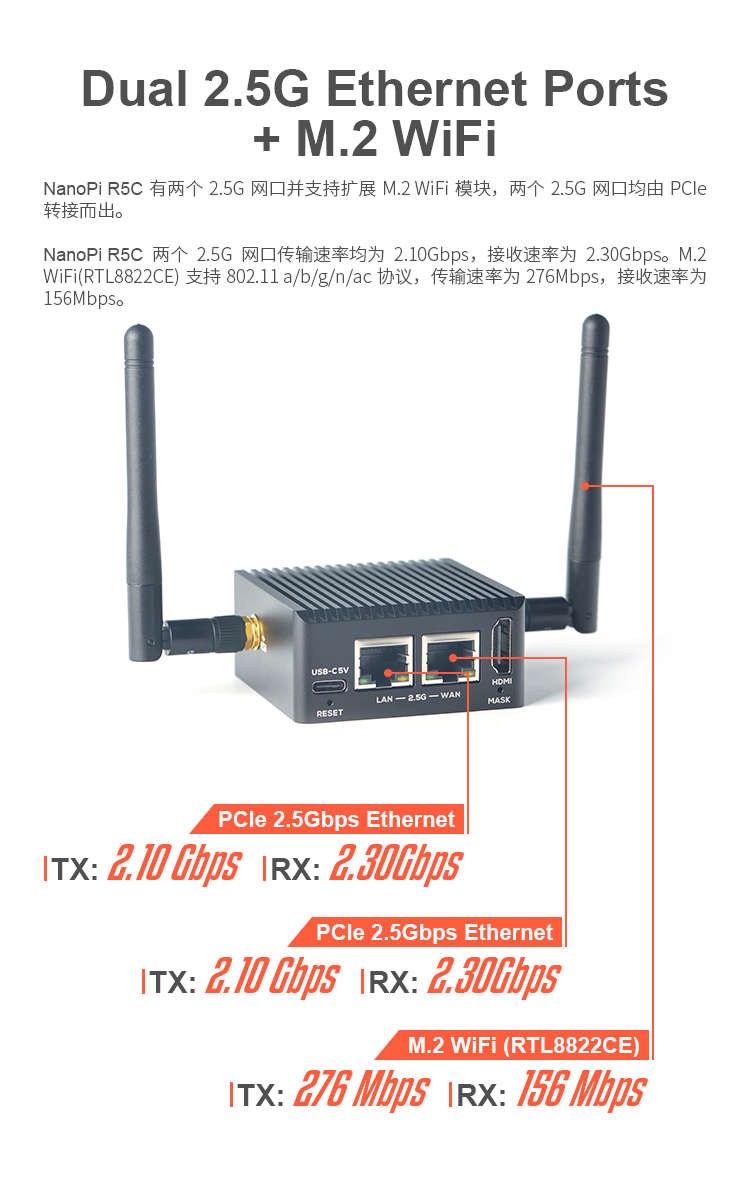

Connectivity Ethernet: PCIe 2.5G Ethernet Ethernet x2,  RTL8125BG chip

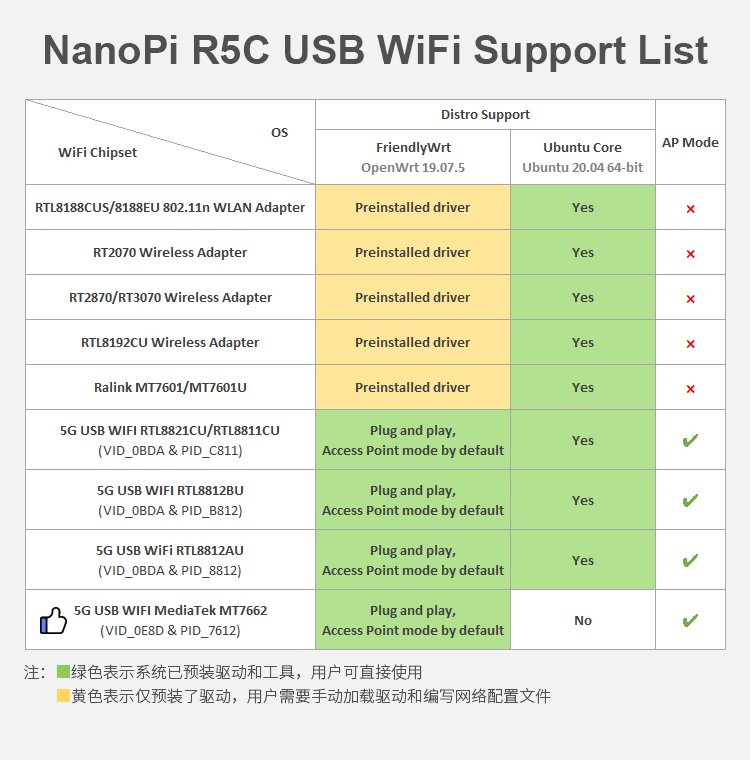

M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module
Video Output HDMI: support HDMI1.4 and HDMI2.0 operation
          support up to 10 bits Deep Color modes
          support up to 1080p@120Hz and 4096x2304@60Hz
          support 3-D video formats
USB USB 3.0 Host x2: USB 3.2 Gen 1 Type-A
USB-C x1: Power Only(5V)
Pin-header Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps

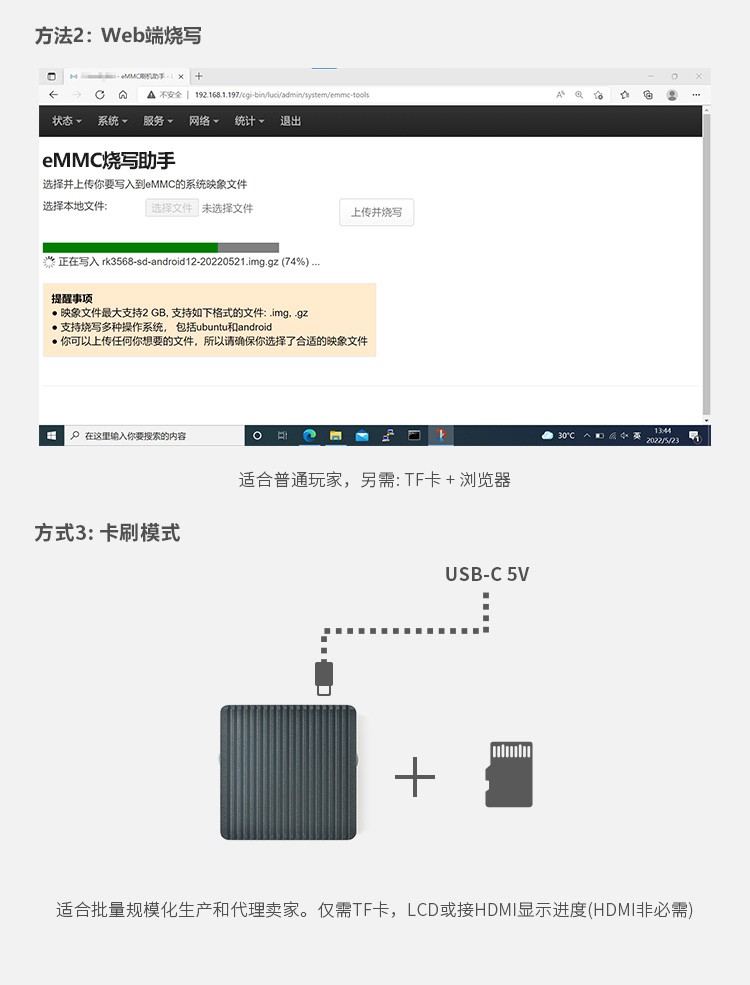

Button MASK Button x1 for eMMC update
User Button x1
LED PWR LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
Wireless LED(Green) x1
Others RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Working Temperature: 0℃ to 70℃
Power USB-C, 5V Input

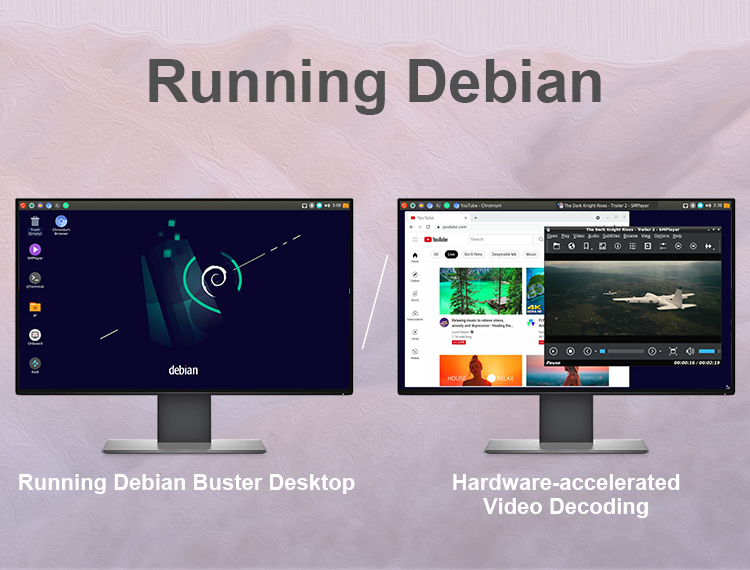

OS Support - Debian Buster Desktop (64-bit)
- FriendlyCore Focal Lite(Base on Ubuntu 20.04)
- Buildroot
Kernel version - Linux-5.10-LTS
- U-boot-2017.09

PCB 8 Layer

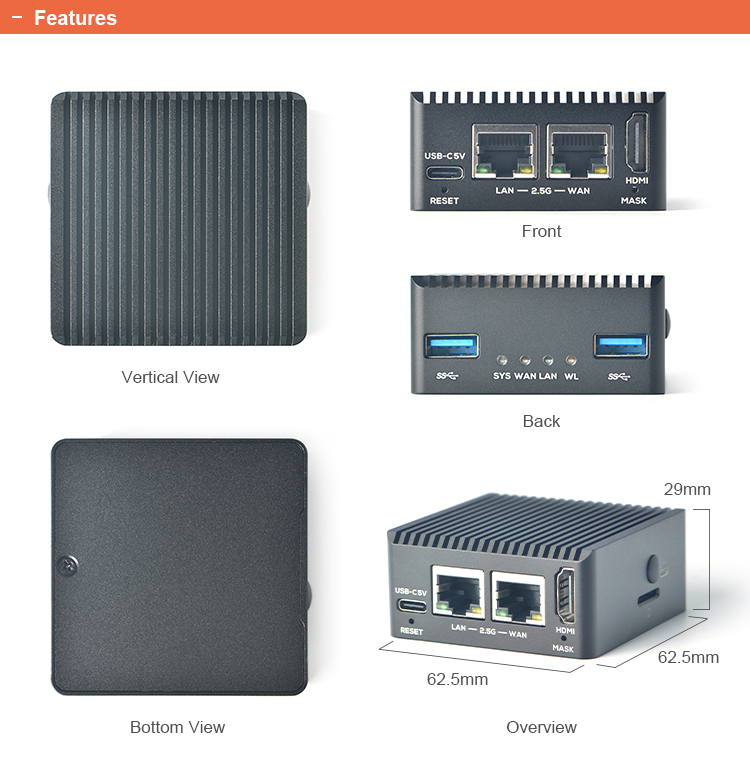

Dimension 58x58x1.6mm mm(without Case) / 62.5x62.5x29mm mm(with Case)
Weight 38g(without Case) / 149g(with Case)

可选 NanoPi R5C无线套餐(含WiFi模块),联系客服下单!!
