ULINK2 USB-JTAG Adapter
图片非实物拍摄

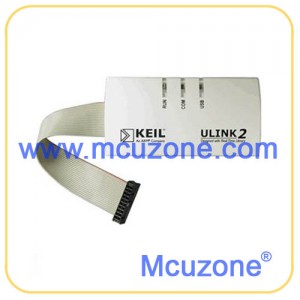

The Keil ULINK2 USB-JTAG Adapter connects your PC's USB port to your target hardware (via JTAG, SWD, or OCDS) and allows you to debug embedded programs running on target hardware.
ULINK2 offers all the features of the original ULINK USB-JTAG Adapter and adds serial wire debug (SWD) support, return clock support, and a real-time agent. ULINK2 works with standard Windows USB drivers.
Technical Specifications
Feature |
|
ULINK2 |
Debugging |
RAM Breakpoints |
Unlimited |
ROM Breakpoints (ARM7/9) |
2 max |
ROM Breakpoints (Cortex-M3) |
6 max |
ROM Breakpoints (µPSD) (Cannot Set While Executing) |
5 max |
ROM Breakpoints (XC800) (Cannot Set While Executing) |
4 max |
ROM Breakpoints (XC166) |
4 max |
Execution Breakpoints (Set While Executing) |
|
Access Breakpoints (ARM7/9) |
2 max (R/W Only, With Value) |
Access Breakpoints (Cortex-M3) |
4 max (With Value) |
Access Breakpoints (µPSD) |
3 max |
Access Breakpoints (XC800) |
1 in IDATA max |
Access Breakpoints (XC166) |
1 max |
Trace History |
|
Real-Time Agent |
|
Performance |
JTAG Clock |
<= 10MHz |
JTAG RTCK Support (Return Clock) |
|
Memory R/W (Bytes/sec) |
≈ 28K |
Flash R/W (Bytes/sec) |
≈ 25K |
Single-Step (Fast) (Instructions/sec) |
≈ 50 |
Supported Devices
For the ULINK2 USB-JTAG Adapter
- Analog Devices (ARM7/ARM9/Cortex-M3 Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7032, ADuC7033, ADuC7128, ADuC7129
- Atmel (ARM7/ARM9/Cortex-M3 Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7S128, AT91SAM7S256, AT91SAM7S32, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7XC128, AT91SAM7XC256, AT91SAM9260, AT91SAM9261
- Freescale Semiconductor (ARM7/ARM9/Cortex-M3 Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144
- Infineon (8051 Family)
TLE7809, TLE7810, TLE7824, TLE7826, XC856-13FF, XC856-16FF, XC856-9FF, XC866-1FR, XC866-2FR, XC866-4FR, XC886-6FF, XC886-8FF, XC886C-6FF, XC886C-8FF, XC886CLM-6FF, XC886CLM-8FF, XC886CM-6FF, XC886CM-8FF, XC886LM-6FF, XC886LM-8FF, XC888-6FF, XC888-8FF, XC888C-6FF, XC888C-8FF, XC888CLM-6FF, XC888CLM-8FF, XC888CM-6FF, XC888CM-8FF, XC888LM-6FF, XC888LM-8FF
- Infineon (C16x/ST10/XC16x Family)
XC161CJ-16F, XC161CS-32F, XC164CM-8F, XC164CS-16F, XC164CS-16R, XC164CS-32F, XC164CS-32R, XC164CS-8F, XC164CS-8R, XC164D-16F, XC164D-32F, XC164LM-8F, XC164S-32F, XC164SM-4F, XC164SM-8F, XC164TM-4F, XC164TM-8F, XC167CI-16F, XC167CI-32F
- Luminary Micro (ARM7/ARM9/Cortex-M3 Family)
LM3S101, LM3S102, LM3S301, LM3S310, LM3S315, LM3S316, LM3S328, LM3S601, LM3S610, LM3S611, LM3S612, LM3S613, LM3S615, LM3S628, LM3S801, LM3S811, LM3S812, LM3S815, LM3S828
- NXP (founded by Philips) (ARM7/ARM9/Cortex-M3 Family)
LPC2101, LPC2102, LPC2103, LPC2104, LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136, LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214, LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC2366, LPC2368, LPC2378, LPC2458, LPC2468, LPC2880, LPC2888, LPC3180
- OKI (ARM7/ARM9/Cortex-M3 Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML696201, ML69Q6203
- Samsung (ARM7/ARM9/Cortex-M3 Family)
S3C2410A, S3C44B0X, S3C4510B
- Sharp (ARM7/ARM9/Cortex-M3 Family)
LH75400, LH75401, LH75410, LH75411
- STMicroelectronics (8051 Family)
uPSD3212A, uPSD3212C, uPSD3212CV, uPSD3233B, uPSD3233BV, uPSD3234A, uPSD3234BV, uPSD3253B, uPSD3253BV, uPSD3254A, uPSD3254BV, uPSD3312D, uPSD3312DV, uPSD3333D, uPSD3333DV, uPSD3334D, uPSD3334DV, uPSD3354D, uPSD3354DV, uPSD3422E, uPSD3422EV, uPSD3433E, uPSD3433EV, uPSD3434E, uPSD3434EV, uPSD3454E, uPSD3454EV
- STMicroelectronics (ARM7/ARM9/Cortex-M3 Family)
STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FM32, STR910FW32, STR911FM42, STR911FM44, STR912FW42, STR912FW44
- TI (ARM7/ARM9/Cortex-M3 Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768
