【英文简介】

The Atmel^® SAM D21 Xplained Pro evaluation kit is ideal for evaluation and prototyping with the SAMD21J18A Cortex^™-M0+ processor-based microcontroller. Extension boards to the SAM D21 Xplained Pro can be purchased individually.

Key Features

• SAMD21J18A microcontroller
• One mechanical reset button
• One mechanical user pushbutton (wake-up, bootloader entry or general purpose)
• One yellow user LED
• 32.768kHz crystal
• USB interface, device and reduced host mode
• 8 Mbit Serial Flash
• 3 Xplained Pro extension headers
• Embedded Debugger
  • Auto-ID for board identification in Atmel Studio 6.1
  • One yellow status LED
  • One green board power LED
  • Symbolic debug of complex data types including scope information
  • Programming and debugging
  • Data Gateway Interface: SPI, I^²C, 4 GPIOs
  • Virtual COM port (CDC)
• USB powered
• Supported with application examples in Atmel Software Framework

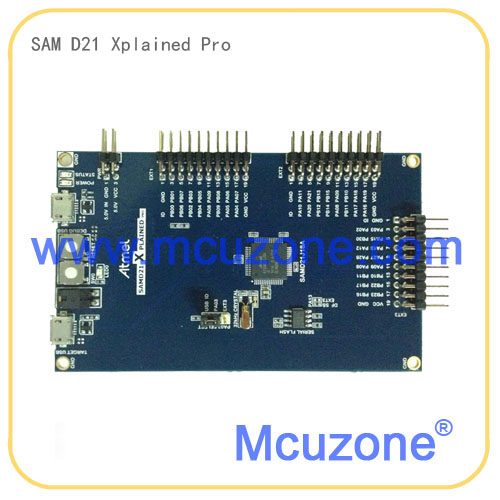

ATMEL SAM D21 Xplained Pro开发板板载EDBG仿真器，采用Cortex-M0+内核SAMD21J18A目标芯片，引出全部GPIO。EDBG板载仿真器除了可以通过SWD接口调试目标芯片外还支持USB转虚拟串口和数据Gateway的功能，更多细节请下载EDBG用户手册。

---

【软件资源】

例子包含在ATMEL STUDIO里面，请到ATMEL网站下载最新的STUDIO，然后参考EDBG的用户手册进行仿真调试。

---



【发货清单】

● SAM D21 Xplained Pro开发板一块，含板载EDBG仿真器
● 无电源，需要自备micro USB线，即常见的手机充电线
● 无光盘，资料需要从ATMEL网站下载



---
