要求安装atmel studio 6.2或之后版本。
【器件支持】
支持AVR 32-bit MCU芯片的JTAG和aWIRE下载调试;
支持XMEGA芯片的JTAG和PDI下载调试;
支持带调试接口的AVR 8-bit MCU芯片的JTAG和SPI下载及JTAG和debugwire调试;
支持Cortex-M内核的SAM芯片SWD和JTAG下载调试;
支持tinyAVR的TPI下载
支持UPDI接口
【性能指标】
完美支持Atmel Studio;
USB 2.0高速接口;
USB供电;
接口电平范围1.62V-5.5V;
JTAG时钟支持从32KHz-7.5MHz;
PDI时钟支持从32KHz-7.5MHz;
debugWIRE波特率支持从4 kbit/s to 0.5 Mbit/s;
aWIRE波特率支持从7.5 kbit/s to 7 Mbit/s;
SPI时钟支持从8 kHz to 5 MHz;
SWD时钟支持从32 kHz to 2 MHz;
支持UPDI接口;
ITM serial trace capture 高达 3MB/s;
最高支持128个软件断点;

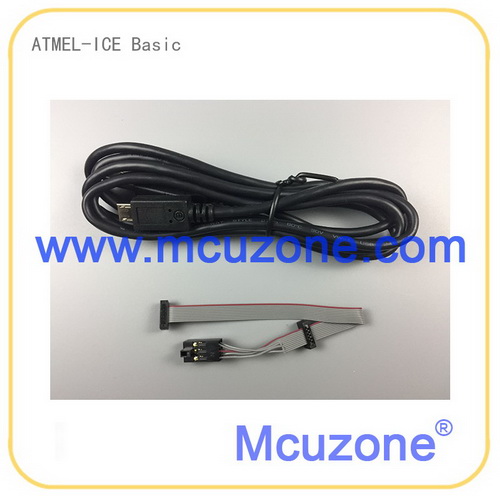

【发货清单】
基础版和全功能版的区别在于配件,全功能版的配件多了一个转接板和一条6芯线.
ATMEL STUDIO支持的操作系统,这个是ATMEL测试过的:
1.1 System requirements
1.1.1 Supported operating systems
● Windows XP (x86) with Service Pack 3 - all editions except Starter Edition
● Windows Vista (x86 & x64) with Service Pack 1 - all editions except Starter Edition
● Windows 7 (x86 and x64)
● Windows 8 (x86 and x64)
● Windows Server 2003 (x86 & x64) with Service Pack 2
● Windows Server 2003 R2 (x86 and x64)
● Windows Server 2008 (x86 and x64) with Service Pack 2
● Windows Server 2008 R2 (x64)
1.1.2 Supported architectures
● 32-Bit (x86)
● 64-Bit (x64)
从XP开始,不管是32还是64位,都是支持的
| |||||||||||||||||||||||||||
|
|
|
|
